2692.8281 | Mentor
Signal light, 12 V (DC), green, 30 mcd, Mounting Ø 8 mm, pitch 2.54 mm, LED number: 1, 2692.8281
Unit Price (€ / pc.)
9.1154 € *
Standard delivery time from the manufacturer is: 11 Weeks

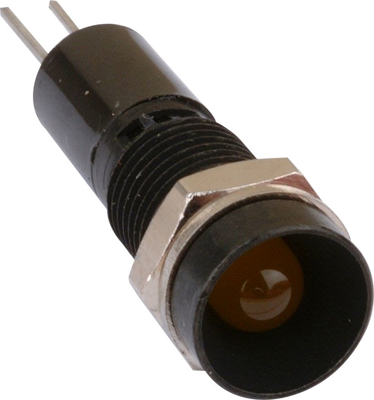

LED signal lamp, 2692.8281, Mentor
Signal lamp for front panel installation is designed for screw mounting with a recommended installation hole of ø 8 mm. The sockets can be supplied with an external or internal reflector. The insert for the LED receptacle is pushed into the case. The signal lamp has an integrated resistor and is designed for nominal voltages of 12V. Supplied with washer and hexagonal nut.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 12 V | |
| Luminous intensity | 0.03 cd | |
| Grid | 2.54 mm | |
| Installation diameter | 8 mm | |
| Diode Diameter | 5 mm | |
| Number of LEDs | 1 | |
| Connection | solder connection | |
| Rated current | 20 mA | |
| Farbe der Beleuchtung | green | |
| Assembly | central Mounting |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
