2692.8223 | Mentor
Signal light, 12 V (DC), red, 10 mcd, Mounting Ø 8 mm, pitch 2.54 mm, LED number: 1, 2692.8223
No longer available from manufacturer - Last time buy manufacturer: 11.30.2025
Unit Price (€ / pc.)
6.5569 € *
Available: 198 pcs.
Total Price:
6.56 € *
Price list
Quantity
Price per unit*
1 pcs.
6.5569 €
10 pcs.
5.7715 €
100 pcs.
5.0694 €
*incl. VAT plus shipping costs
Subject to prior sale

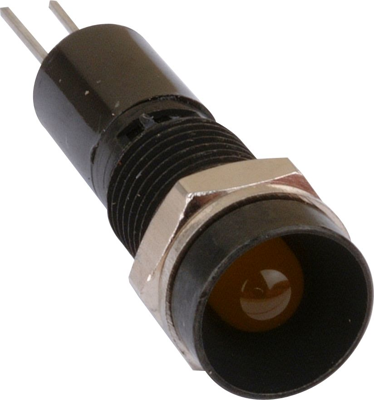

LED signal lamp, 2692.8223, Mentor

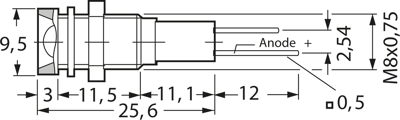

Signal lamp for front panel installation is designed for screw mounting with a recommended installation hole of ø 8 mm. The sockets can be supplied with an external or internal reflector. The insert for the LED receptacle is pushed into the case. The signal lamp has an integrated resistor and is designed for nominal voltages of 12V. Supplied with washer and hexagonal nut.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | central Mounting | |
| Diode Diameter | 5 mm | |
| Installation diameter | 8 mm | |
| Grid | 2.54 mm | |
| Connection | solder connection | |
| Number of LEDs | 1 | |
| Rated current | 20 mA | |
| Luminous intensity | 0.01 cd | |
| Farbe der Beleuchtung | red | |
| Rated voltage (DC) | 12 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
