2692.8121 | Mentor

Signal light, 5 V (DC), red, 10 mcd, Mounting Ø 8 mm, pitch 2.54 mm, LED number: 1, 2692.8121

Order No.: 31G8600
EAN: 4099889582611
MPN:
2692.8121
26928121
Series: 2692.8

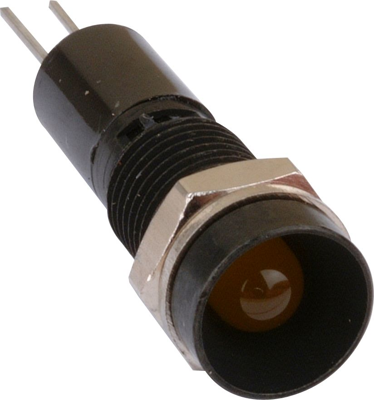

2692.8121 Mentor Signal Lamps, Indicators, Arrays Image 1
2692.8121 Mentor Signal Lamps, Indicators, Arrays Image 2
Image may differ
Unit Price (€ / pc.)
7.9730 € *
Available: 116 pcs.
Total Price:
7.97 € *
Price list
Quantity
Price per unit*
1 pcs.
7.9730 €
10 pcs.
7.0210 €
100 pcs.
6.1523 €
250 pcs.
5.9143 €
1000 pcs.
5.5216 €
*incl. VAT plus shipping costs
Subject to prior sale

LED signal lamp, 2692.8121, Mentor

The signal lamp is installed by pressing it into the mounting hole, such that protection class IP40 is achieved in front of the front panel. The signal lamp has a VDE approval for a temperature range T of 85°C.

Technical specifications
Filter Property Value
Grid 2.54 mm
Connection solder connection
Number of LEDs 1
Rated voltage (DC) 5 V
Luminous intensity 0.01 cd
Assembly central Mounting
Farbe der Beleuchtung red
Diode Diameter 5 mm
Rated current 16 mA
Installation diameter 8 mm
Logistics
Property Value
Customs tariff number 85414100
Country of origin TN
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
