2664.8021 | Mentor

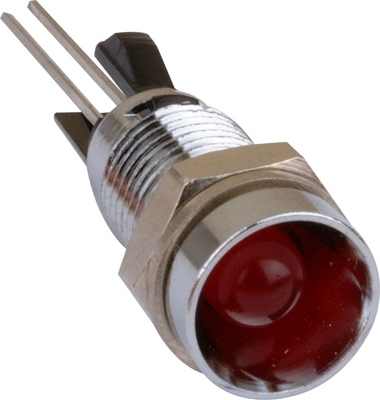

LED signal light, red, 10 mcd, Mounting Ø 8 mm, pitch 2.54 mm, LED number: 1, 2664.8021
Unit Price (€ / pc.)
4.1531 € *
Available: 169 pcs.
Leadtime: 7 Weeks **
Total Price:
4.15 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1531 €
10 pcs.
3.6533 €
100 pcs.
3.2130 €
250 pcs.
3.0940 €
1000 pcs.
2.8798 €
*incl. VAT plus shipping costs
**Subject to prior sale

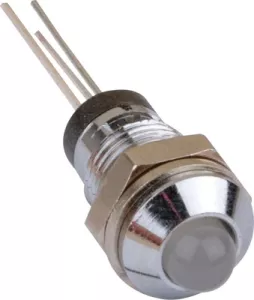

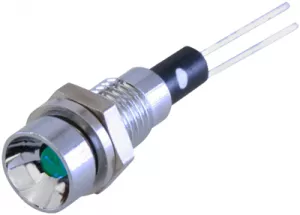

LED signal lamps, type Mentor 2664../2665.

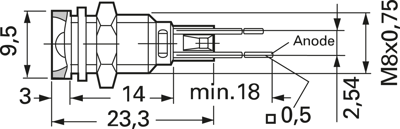

Diode diameter: 5.0 mm. High-gloss chrome finish-plated or dull black, with inner or outer reflector and removable snap-on insert. Housing material: chrome finished or dull black CuZn. Tinned terminals. Operating temperatures: –40 to +85 °C. Bushing mount: M 8 x 0.75.
With inner reflector, chrome finished, type 2664.
Technical attributes (type, LED color, on-state voltage (typically) at 20 mA, on-state current (max.), wavelength, luminous intensity (min./typically) at 10 mA): 2664.8021, red, 2.25 V, 25 mA, 660 nm, 1.8/5.0 mcd
Technical specifications
| Connection | solder connection | |
| Number of LEDs | 1 | |
| Diode Diameter | 5 mm | |
| Installation diameter | 8 mm | |
| Farbe der Beleuchtung | red | |
| Luminous intensity | 0.01 cd | |
| Assembly | central Mounting | |
| Rated current | 20 mA | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85414100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
