2663.8061 | Mentor
Signal light, blue, 100 mcd, Mounting Ø 6 mm, pitch 2.54 mm, LED number: 1, 2663.8061
Unit Price (€ / pc.)
6.9496 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1,389.92 € *
Price list
Quantity
Price per unit*
200 pcs.
6.9496 €
1000 pcs.
6.5450 €
*incl. VAT plus shipping costs
Subject to prior sale

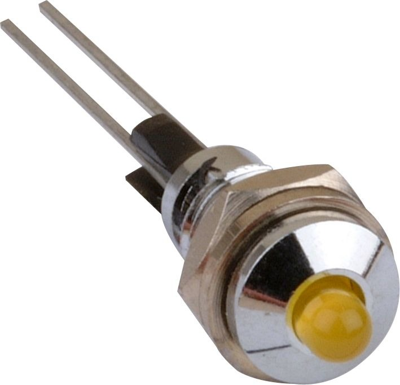

LED signal lamp, 2663.8061, Mentor
Signal lamp for front panel installation is designed for screw mounting with a recommended installation hole of ø 6 mm. The sockets can be supplied with an external or internal reflector. The plug insert is removable. Supplied with washer and hexagonal nut.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Installation diameter | 6 mm | |
| Luminous intensity | 0.1 cd | |
| Connection | solder connection | |
| Farbe der Beleuchtung | blue | |
| Diode Diameter | 2.8 mm | |
| Assembly | central Mounting | |
| Number of LEDs | 1 | |
| Rated current | 20 mA | |
| Grid | 2.54 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TN |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
