2663.8023 | Mentor
Signal light, red, 4 mcd, Mounting Ø 6 mm, pitch 2.54 mm, LED number: 1, 2663.8023
Unit Price (€ / pc.)
3.3082 € *
Available: 9 pcs.
Total Price:
3.31 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3082 €
10 pcs.
2.9869 €
50 pcs.
2.7608 €
200 pcs.
2.5466 €
1000 pcs.
2.3919 €
*incl. VAT plus shipping costs
Subject to prior sale

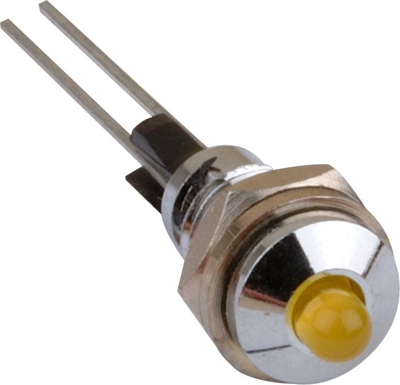

LED signal lamp, 2663.8023, Mentor
Signal lamp for front panel installation is designed for screw mounting with a recommended installation hole of ø 6 mm. The sockets can be supplied with an external or internal reflector. The plug insert is removable. Supplied with washer and hexagonal nut.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 20 mA | |
| Luminous intensity | 0.004 cd | |
| Connection | solder connection | |
| Diode Diameter | 3 mm | |
| Number of LEDs | 1 | |
| Farbe der Beleuchtung | red | |
| Assembly | central Mounting | |
| Installation diameter | 6 mm | |
| Grid | 2.54 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
