2662.8021 | Mentor

Signal light, red, 4 mcd, Mounting Ø 6 mm, pitch 2.54 mm, LED number: 1, 2662.8021

Order No.: 31G8462
EAN: 4099889582277
MPN:
2662.8021
26628021
Series: 2662.8

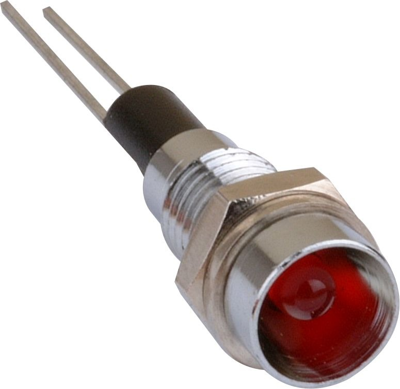

2662.8021 Mentor Signal Lamps, Indicators, Arrays Image 1
2662.8021 Mentor Signal Lamps, Indicators, Arrays Image 2
Image may differ
Unit Price (€ / pc.)
4.6886 € *
Available: 29 pcs.
Total Price:
4.69 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6886 €
10 pcs.
4.1293 €
100 pcs.
3.6176 €
250 pcs.
3.4867 €
1000 pcs.
3.2487 €
*incl. VAT plus shipping costs
Subject to prior sale

LED signal lamp, 2662.8021, Mentor

Signal lamp for front panel installation is designed for screw mounting with a recommended installation hole of ø 6 mm. The sockets can be supplied with an external or internal reflector. The plug insert is removable. Supplied with washer and hexagonal nut.

Technical specifications
Filter Property Value
Grid 2.54 mm
Farbe der Beleuchtung red
Luminous intensity 0.004 cd
Rated current 20 mA
Connection solder connection
Assembly central Mounting
Number of LEDs 1
Installation diameter 6 mm
Diode Diameter 3 mm
Logistics
Property Value
Customs tariff number 85414100
Country of origin TN
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
