2662.3071 | Mentor

Signal light, yellow, 4 mcd, Mounting Ø 6 mm, pitch 2.54 mm, LED number: 1, 2662.3071

Order No.: 31G8502
EAN: 4099889582390
MPN:
2662.3071
26623071
Series: 2662.3
2662.3071 Mentor Signal Lamps, Indicators, Arrays
Image may differ
Unit Price (€ / pc.)
4.9504 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
990.08 € *
*incl. VAT plus shipping costs
Subject to prior sale
200 pcs.
4.9504 €

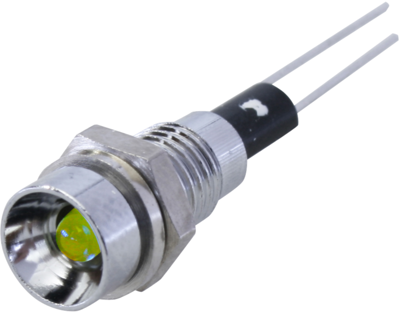

LED signal lamp, 2662.3071, Mentor

Signal lamp for front panel installation is designed for screw mounting with a recommended installation hole of ø 6 mm. The sockets can be supplied with an external or internal reflector. The plug insert is removable. Supplied with washer and hexagonal nut.

Technical specifications
Filter Property Value
Number of LEDs 1
Diode Diameter 3 mm
Connection solder connection
Luminous intensity 0.004 cd
Assembly central Mounting
Grid 2.54 mm
Farbe der Beleuchtung yellow
Installation diameter 6 mm
Rated current 2 mA
Logistics
Property Value
Country of origin TN
Customs tariff number 85414100
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
