1807.7031 | Mentor
Signal light, yellow, 30 mcd, pitch 2.54 mm, LED number: 1, 1807.7031
Unit Price (€ / pc.)
3.0345 € *
Standard delivery time from the manufacturer is: On Request

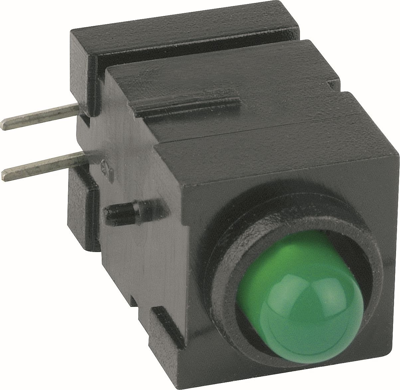

Signal lamp, 1807.7031, Mentor
This component is equipped with lateral fins and grooves, which interlock when stacking the components thus guaranteeing stability on the printed circuit board. The attached fixing pin provides additional mechanical hold. Series 1904 and 1807 are available with integrated protective resistor for various operating voltages on request.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Farbe der Beleuchtung | yellow | |
| Luminous intensity | 0.03 cd | |
| Rated current | 20 mA | |
| Connection | PCB connection | |
| Assembly | through hole | |
| Number of LEDs | 1 | |
| Diode Diameter | 5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
