1806.2032 | Mentor

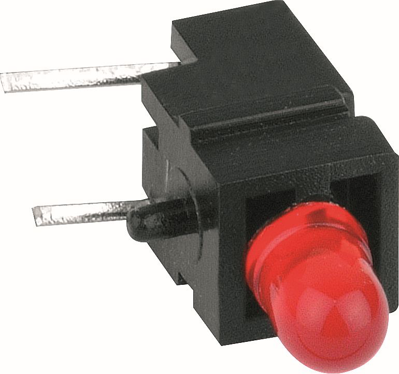

LED signal light, red, 4 mcd, pitch 2.54 mm, LED number: 1
Unit Price (€ / pc.)
2.6061 € *
Available: 0 pcs.
Leadtime: On Request **
LED signal lamps, type Mentor 1806.
Diode diameter: 3.0 mm. Grid: 2.54 mm, horizontal, suitable for in-line installation, with guides and grooves on the side. Housing material: PC, black. Connections: tinned. Operating temperatures: –40 to +85 °C.
Technical attributes (type, LED color, forward Voltage (typical) at 20 mA, forward current (max.), wavelength, luminous intensity (min./max.) at 10 mA): 1806.2032, red, 2.25 V, 25 mA, 700 nm, 3.0/7.0 mcd
Technical specifications
| Connection | PCB connection | |
| Number of LEDs | 1 | |
| Diode Diameter | 3 mm | |
| Farbe der Beleuchtung | red | |
| Luminous intensity | 0.004 cd | |
| Assembly | through hole | |
| Rated current | 20 mA | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85414100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
