1802.8832 | Mentor
Signal light, 2 V (DC), yellow, 12.5 mcd, pitch 2.54 mm, LED number: 2, 1802.8832
Unit Price (€ / pc.)
4.8433 € *
Standard delivery time from the manufacturer is: On Request

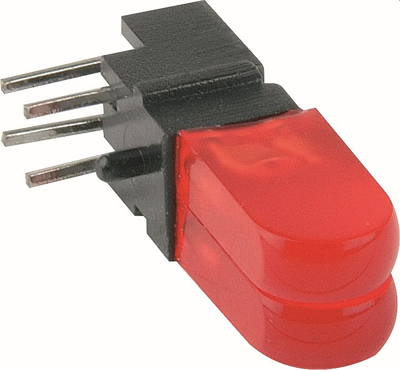

LED-Signal lamp, 1802.8832, Mentor
This component consist of two-scale LED. Lateral fins and grooves, which interlock when stacking the components, guarantee stability on the printed circuit board. The scale LED can be arranged horizontally and vertically and the components can be used for two levels.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Farbe der Beleuchtung | yellow | |
| Luminous intensity | 0.0125 cd | |
| Rated current | 20 mA | |
| Connection | PCB connection | |
| Assembly | through hole | |
| Number of LEDs | 2 | |
| Rated voltage (DC) | 2 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
