1801.2131 | Mentor

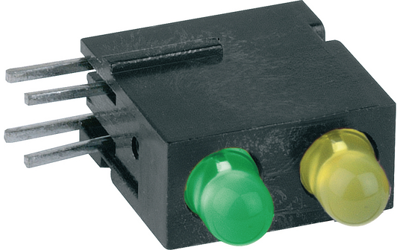

Signal light, green/yellow, 20 mcd, pitch 2.54 mm, LED number: 2, 1801.2131
Unit Price (€ / pc.)
2.6180 € *
Available: 110 pcs.
Next delivery: 37 pcs. on 2025-08-01
Total Price:
2.62 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6180 €
25 pcs.
2.2372 €
100 pcs.
2.0706 €
250 pcs.
1.9635 €
1000 pcs.
1.7731 €
*incl. VAT plus shipping costs
Subject to prior sale
LED-Signal lamp, 1801.2131, Mentor
This component with lateral fins and grooves, which interlock when being stacked, guarantees appropriate stabilization on the printed circuit board. This component is additionally equipped with clamp thus being held on the printed circuit board and enabling soldering. Also combines technical functionality and a high variability of application technology.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of LEDs | 2 | |
| Rated current | 20 mA | |
| Grid | 2.54 mm | |
| Connection | PCB connection | |
| Diode Diameter | 3 mm | |
| Farbe der Beleuchtung | green/yellow | |
| Luminous intensity | 0.02 cd | |
| Assembly | through hole |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TN |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
