1800.2032 | Mentor

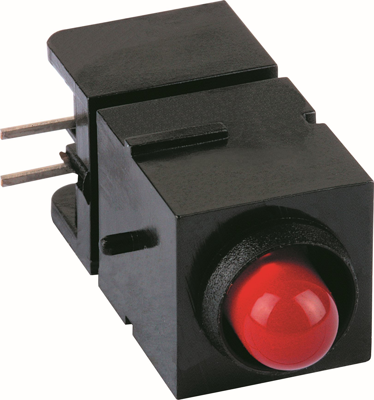

Signal light, red, 10 mcd, pitch 2.54 mm, LED number: 1, 1800.2032
No longer available from manufacturer - Last time buy manufacturer: 11.30.2025
Unit Price (€ / pc.)
2.5109 € *
Standard delivery time from the manufacturer is: 1 Week
Signal lamp, 1800.2032, Mentor
This component is equipped with lateral fins and grooves, which interlock when stacking the components thus guaranteeing stability on the printed circuit board. The attached fixing pin provides additional mechanical hold. Series 1904 and 1807 are available with integrated protective resistor for various operating voltages on request.
This component can also be equipped with 3-pole LEDs.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | PCB connection | |
| Farbe der Beleuchtung | red | |
| Grid | 2.54 mm | |
| Assembly | through hole | |
| Number of LEDs | 1 | |
| Diode Diameter | 5 mm | |
| Luminous intensity | 0.01 cd | |
| Rated current | 20 mA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TN |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
