225.2 | Mentor
Rotary switch, 1 pole, 3 stage, On-On, 500 mA, 60 V, 225.2
Unit Price (€ / pc.)
3.5819 € *
Standard delivery time from the manufacturer is: 1 Week

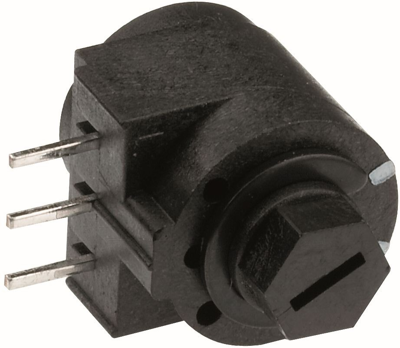

Rotary switch, 225.2, Mentor
This is an especially miniaturized, precisionmade type which is screwdriver-actuated. Several single pole switches can be connected by inserting them into each other, since the switches have a hexagonal input shaft and a hexagonal recessed output shaft. This will permit the assembly of multiple arrangements. Contacts and terminals are of one-piece construction and protected against dust and soldering materials.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shift position | On-On | |
| Breaking capacity | 6 VA | |
| Pin number | 1 pole | |
| Rated voltage | 60 V | |
| switching current | 500 mA | |
| Product type | rotary switch | |
| Number of steps | 3 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TN |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
