1843.9031 | Mentor

Step rotary switches, 10 pole, 4 stage, 30°, On-On, interrupting, 500 mA, 60 V, 1843.9031

Order No.: 16G200
EAN: 4099889220858
MPN:
1843.9031
18439031
Series: 1843

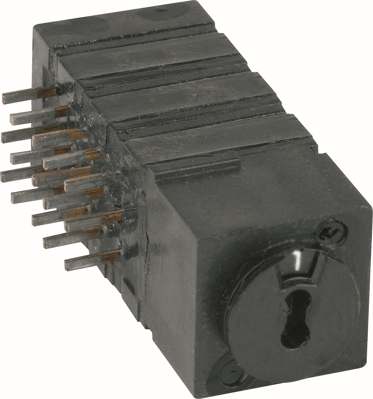

1843.9031 Mentor Rotary Switches and Selector Switches Image 1

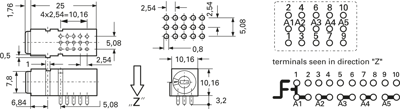

1843.9031 Mentor Rotary Switches and Selector Switches Image 2
Image may differ

Not suitable for new designs

Unit Price (€ / pc.)
27.2748 € *
Available: 19 pcs.
Total Price:
27.27 € *
Price list
Quantity
Price per unit*
1 pcs.
27.2748 €
10 pcs.
25.4184 €
20 pcs.
23.5620 €
*incl. VAT plus shipping costs
Subject to prior sale

Multistep rotary switches, type Mentor 1843.9031.

With 10 switching positions, break before make action, for PCB mounting; Switching voltage: 60 V AC/DC. Switching current: 0.5 A. Breaking capacity: 6.0 VA. Quiescent current: 1.0 A. Contact resistance: < 50 mohm. Actuating force: max. 5.0 N/cm. Housing material: black PES. Operating temperatures: –40 to +85 °C. Note: with simple step indexing. Example: if levels 1 to 5 are required, the pushbutton is pushed in at position 1, then switched to level 10 and, subsequently released and then pressed in again at position 5. Levels 1 to 5 can be switched via contact banks A3 to A5 in this position.

Type: 1843.9031, multistep rotary switch

Technical specifications
Filter Property Value
Pin number 10 pole
Connection PCB connection
switching current 500 mA
Switching Mode interrupting
Number of steps 4
Breaking capacity 6 VA
Shift position On-On
Rated voltage 60 V
Switching angle 30 °
Product type step rotary switches
Logistics
Property Value
Customs tariff number 85365015
Country of origin TN
Original Packaging Bar with 15 pieces
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
