1852.6231 | Mentor
Pushbutton, 1 pole, black, unlit , 0.5 A/60 V, IP50, 1852.6231
Unit Price (€ / pc.)
3.4748 € *
Available: 1 pcs.
Next delivery: 50 pcs. on 2026-04-10
Total Price:
3.47 € *
Price list
Quantity
Price per unit*
1 pcs.
3.4748 €
10 pcs.
3.0464 €
100 pcs.
2.6656 €
250 pcs.
2.5704 €
1000 pcs.
2.4157 €
*incl. VAT plus shipping costs
Subject to prior sale
Pushbutton switches, type Mentor 1852.
Single-pole, horizontal or vertical; Contact type: NO. Switching voltage: max. 60 V AC/DC. Switching current: max. 0.5 A. Test voltage: 500 V/50 Hz. Breaking capacity: max. 6.0 VA. No-load current: max. 1.0 A. Contact resistance: max. 50 mohm. Actuating force: max. 5.0 N. Housing material: PC, black. Connections: solder pins, tinned. Operating temperatures: –40 to +85 °C. Corresponding actuators are available on separate order.
Vertical, type 1852.

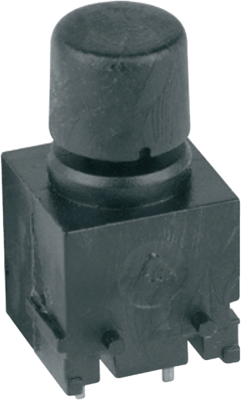

Type: 1852.6231, pushbutton switch, vertical
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | groping | |
| Pin number | 1 pole | |
| Actuator colour | black | |
| Breaking capacity | 0.5 A/60 V | |
| illuminated | No | |
| Printed | No | |
| Vandal-proof | No | |
| Connection | solder connection | |
| Design | round | |
| Protection class | IP50 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TN |
| Customs tariff number | 85365011 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
