1845.6332 | Mentor

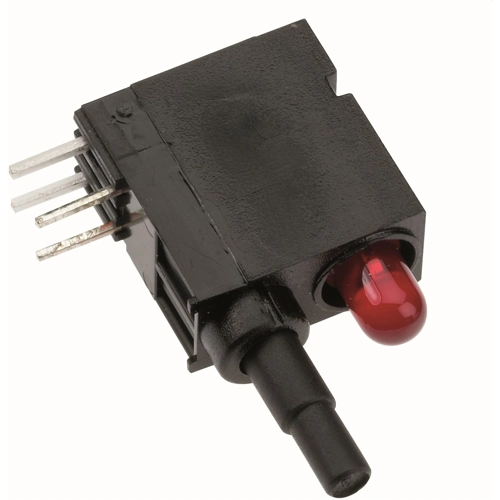

Pushbutton, 1 pole, red, illuminated (red), 0.5 A/60 V, IP50, 1845.6332
Unit Price (€ / pc.)
4.4982 € *
Standard delivery time from the manufacturer is: 2 Weeks
Push button, 1845.6332, Mentor
These 1-pole push-buttons are designed as impulse-buttons/short-stroke buttons. A short stroke and a very long lifetime are achieved through the snap disc made of CrNi-steel. The contact acknowledgement determines the switching point. The series 1845 switch buttons are equipped with a LED to indicate the particular operation status.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | PCB connection | |
| Actuator colour | red | |
| Farbe der Beleuchtung | red | |
| Latching switching function | groping | |
| Pin number | 1 pole | |
| Vandal-proof | No | |
| Protection class | IP50 | |
| Design | round | |
| illuminated | Yes | |
| Breaking capacity | 0.5 A/60 V | |
| Printed | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TN |
| Customs tariff number | 85365011 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
