1845.6038 | Mentor

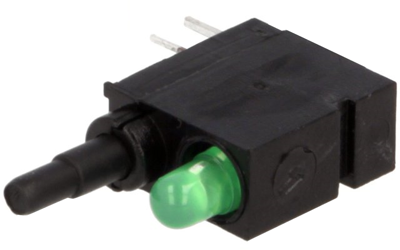

Pushbutton, 1 pole, black, illuminated (green), 0.5 A/60 V, IP50, 1845.6038
Unit Price (€ / pc.)
4.9266 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
246.33 € *
Price list
Quantity
Price per unit*
50 pcs.
4.9266 €
100 pcs.
4.3197 €
150 pcs.
4.1412 €
200 pcs.
3.8913 €
*incl. VAT plus shipping costs
Subject to prior sale
Pushbutton switches with LED, type Mentor 1845.
Single-pole; Switching action: off - momentary on (M), for PCB connection. Housing material: PC, black, terminals: tinned, actuating force: max. 5.0 N. Breaking capacity: 0.5 A/60 V AC/DC. Test voltage: 500 V/50 Hz. Contact resistance: max. 200 mohm. Operating temperatures: –40 to +85 °C. The actuator element can be equipped with separately available snap-on plastic buttons.
Technical attributes (type, LED color): 1845.6038, green
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | solder connection | |
| Actuator colour | black | |
| Farbe der Beleuchtung | green | |
| Latching switching function | groping | |
| Pin number | 1 pole | |
| Vandal-proof | No | |
| Protection class | IP50 | |
| Design | round | |
| illuminated | Yes | |
| Breaking capacity | 0.5 A/60 V | |
| Printed | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TN |
| Customs tariff number | 85365011 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
