1845.6037 | Mentor

Pushbutton, 1 pole, black, illuminated  (yellow), 0.5 A/60 V, IP50, 1845.6037

Order No.: 12G2791
EAN: 4099889190083
MPN:
1845.6037
18456037
Series: 1845.60

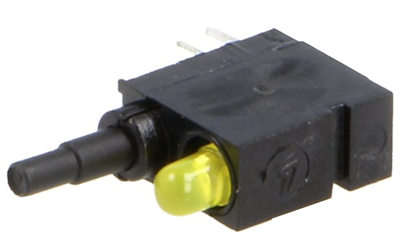

1845.6037 Mentor Pushbutton Switches Image 1

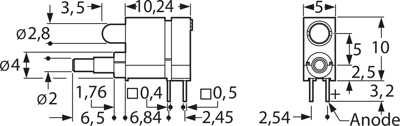

1845.6037 Mentor Pushbutton Switches Image 2
Image may differ
Unit Price (€ / pc.)
4.0103 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
200.52 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
4.0103 €

Pushbutton switches with LED, type Mentor 1845.

Single-pole; Switching action: off - momentary on (M), for PCB connection. Housing material: PC, black, terminals: tinned, actuating force: max. 5.0 N. Breaking capacity: 0.5 A/60 V AC/DC. Test voltage: 500 V/50 Hz. Contact resistance: max. 200 mohm. Operating temperatures: –40 to +85 °C. The actuator element can be equipped with separately available snap-on plastic buttons.

Technical attributes (type, LED color): 1845.6037, yellow

Technical specifications
Vandal-proof No
Printed No
Breaking capacity 0.5 A/60 V
Actuator colour black
Farbe der Beleuchtung yellow
Pin number 1 pole
Design round
illuminated Yes
Connection solder connection
Protection class IP50
Latching switching function groping
Logistics
Country of origin TN
Customs tariff number 85365011
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
