1844.6234 | Mentor

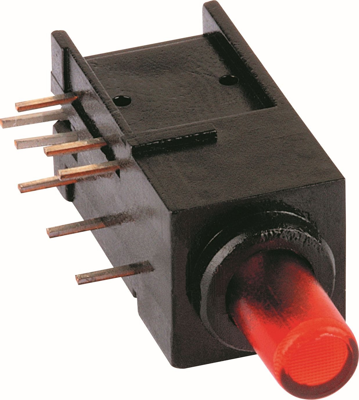

Pushbutton, 2 pole, red, illuminated (red), 0.5 A/60 V, IP50, 1844.6234
Unit Price (€ / pc.)
4.8195 € *
Standard delivery time from the manufacturer is: On Request
Pressure switch, 1844.6234, Mentor
The press switch with a push-push function the push button with impulse function can optimally be stringed. The components are soldering bath proof and washable. All press switches have transparent buttons in red, yellow and green color, i.e. those without LEDs as well as the ones illuminated by LEDs.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | groping | |
| Pin number | 2 pole | |
| Protection class | IP50 | |
| Farbe der Beleuchtung | red | |
| Vandal-proof | No | |
| Printed | No | |
| Connection | PCB connection | |
| illuminated | Yes | |
| Breaking capacity | 0.5 A/60 V | |
| Design | round | |
| Actuator colour | red |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365011 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
