2671.8021 | Mentor

Translucent lens, 2671.8021, red

Order No.: 32G255
EAN: 4099879018618
MPN:
2671.8021
26718021
Series: 2671.8

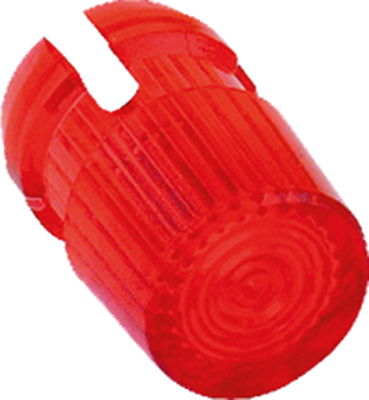

2671.8021 Mentor Light Guides Image 1
2671.8021 Mentor Light Guides Image 2
Image may differ

Discontinued

Unit Price (€ / pc.)
0.8449 € *
Available: 422 pcs.
Total Price:
8.45 € *
Price list
Quantity
Price per unit*
10 pcs.
0.8449 €
50 pcs.
0.7497 €
250 pcs.
0.6426 €
*incl. VAT plus shipping costs
Subject to prior sale

Translucent lens, 2671.8021, Mentor

Snap-in mount. The cap increases the angle of vision by up to 180° and enables the use of LEDs with small radiation angle; Mounting: The cap is snapped into the front panel hole and the LED element is then inserted with slight pressure from the rear. Material: CAB. Operating temperatures: -40 to +85 °C.

For LED with 5.0 mm diameter.

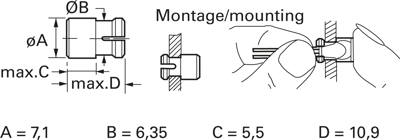

Front-panel thickness: 1.5 to 3.0 mm. Mounting hole: 6.4 mm diameter. Dimensions: A 7.1, B 6.35, C 5.5, D 10.9 mm.

Type: 2671.8021, red

Technical specifications
Filter Property Value
Version light cap
Logistics
Property Value
Country of origin US
Customs tariff number 39269097
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
