type: 1296.1004

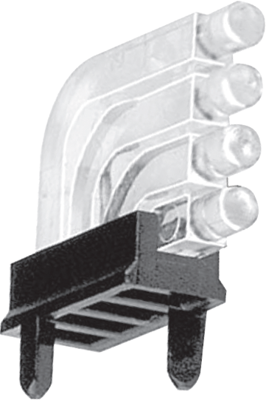

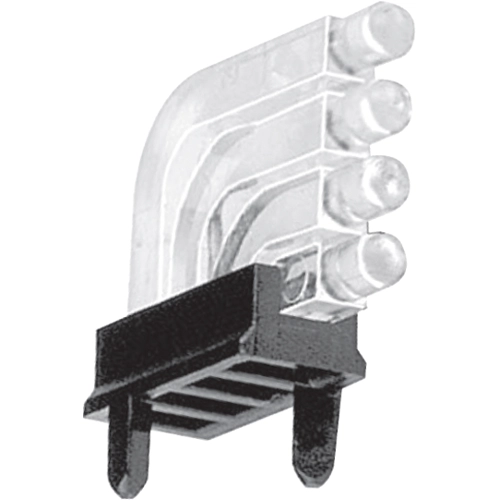

horizontal version, as quadruple display, for use with SMD LEDs size 0805 or smaller. The bezel allows the insertion of LEDs of different color with clear separation of the light beams.
Material: light guide/bezel PC, crystal clear UL94/PC, black UL94
ESD protection: 8.0 kV
Ambient temperatures: - 40 to +85 °C

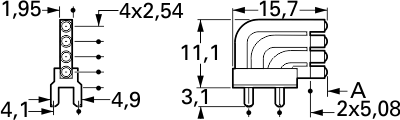

Dimension A: 2.8 mm
Version | spherical | |
Assembly | PCB mounting |
Country of origin | TN |
Customs tariff number | 39269097 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
