1282.8001 | Mentor
Single optical fibre, diagonally 45°, (L x Ø) 45.25 x 3.2 mm, 1282.8001
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.3451 € *
Available: 275 pcs.
Total Price:
0.35 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3451 €
25 pcs.
0.3094 €
100 pcs.
0.2904 €
*incl. VAT plus shipping costs
Subject to prior sale

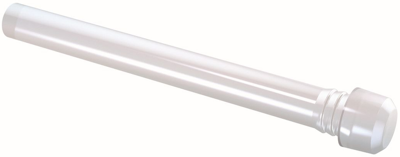

Light guide, 1282.8001, Mentor
Water-proof, for use with TOP LEDs; Material: PC crystal clear UL94. Degree of protection: IP 68. Dimensions: A 45 mm, B 46.5 mm with spherical and planar head, 45.4 mm with countersink head.
With planar head, type 1282../1292../1293.
Einkopplung schräg (45°) mit Schutzart IP 68.
Technical attributes (type, mounting hole C, head diameter D, optical fiber diameter E, light coupling surface): 1282.8001, C 2.6 mm, D 3.2 mm, E 2.5 mm, 45 °
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | single optical fibre | |
| Version | diagonally 45° | |
| Assembly | front plate | |
| Length | 45.25 mm | |
| diameter | 3.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
