1282.6001 | Mentor

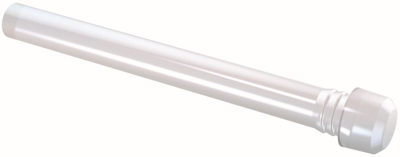

Light guide, planarem Kopf, 45 mm, PC glasklar, 1282.6001

Order No.: 31G8846
EAN: 4099879018052
MPN:
1282.6001
12826001
Series: 1282
1282.6001 Mentor Light Guides Image 1
1282.6001 Mentor Light Guides Image 2
Image may differ
Unit Price (€ / pc.)
0.3332 € *
Available: 607 pcs.
Total Price:
3.33 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
0.3332 €

Light guide, 1282.6001, Mentor

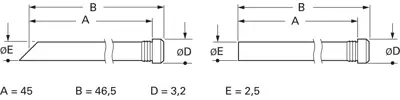

Water-proof, for use with TOP LEDs; Material: PC crystal clear UL94. Degree of protection: IP 68. Dimensions: A 45 mm, B 46.5 mm with spherical and planar head, 45.4 mm with countersink head.

With planar head, type 1282../1292../1293.

Einkopplung gerade (0°) mit Schutzart IP 68.

Technical attributes (type, mounting hole C, head diameter D, optical fiber diameter E, light coupling surface): 1282.6001, C 2.6 mm, D 3.2 mm, E 2.5 mm, 0 °

Technical specifications
Filter Property Value
Version planar
Assembly front plate
Logistics
Property Value
Country of origin DE
Customs tariff number 39269097
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
