1273.1001 | Mentor
Single optical fibre, head size 2 x 5 mm, (L) 18.29 mm, 1273.1001
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.5355 € *
Available: 13 pcs.
Total Price:
0.54 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5355 €
25 pcs.
0.4998 €
*incl. VAT plus shipping costs
Subject to prior sale

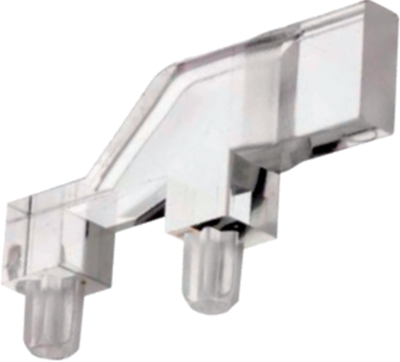

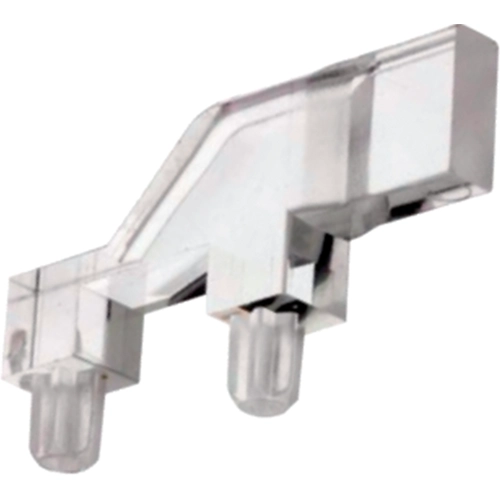

Light guide, 1273.1001, Mentor

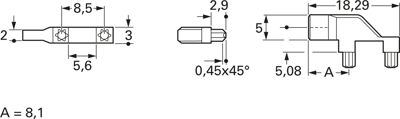

Horizontal version, suited for in-line installation, mounted with two spigots, for use with TOP LEDs; light guide shape: rectangular, 2.0 x 5.0 mm, material: PMMA, crystal clear UL94, ESD protection: 12 kV. Ambient temperature: -40 to +85 °C. dimension A: 8.1 mm.
Type: 1273.1001, FOC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | single optical fibre | |
| Version | head size 2 x 5 mm | |
| Assembly | PCB mounting | |
| Length | 18.29 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
