1817.2131 | Mentor

2 mm switching socket, PCB connection, mounting Ø 3.8 mm, black, 1817.2131

Order No.: 39G1689
EAN: 4099889673906
MPN:
1817.2131
18172131
Series: 1817.21
1817.2131 Mentor Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
1.8564 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
92.82 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
1.8564 €

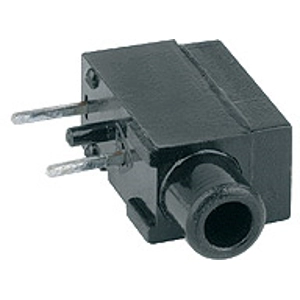

Switch jack ø 2 mm, 1817.2131, Mentor

This double insulated switch jack is suitable for connectors Ø 2 mm. The insulated switch jack is provided with lateral fins and grooves, which interlock when stacking the insulated switch jacks thus guaranteeing stability on the printed circuit board in order to absorb the necessary insertion and withdrawing forces. A plastic dowel serves as additional mechanical fixing point on the printed circuit board. The collar at the face of the component guarantees the mounting point at the front panel and preservation from short circuit between test terminal and front panel.

Technical specifications
Colour black
Installation diameter 3.8 mm
contact surface nickel-plated
diameter 2 mm
Length 13.7 mm
Version switching socket
Connection PCB connection
Rated Voltage 60 V
Rated current 1 A
Logistics
Country of origin TN
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
