1813.2231 | Mentor
2 mm test socket, solder connection, black, 1813.2231
Unit Price (€ / pc.)
1.9040 € *
Available: 1,095 pcs.
Total Price:
1.90 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9040 €
25 pcs.
1.7731 €
100 pcs.
1.6303 €
250 pcs.
1.4994 €
1000 pcs.
1.3447 €
*incl. VAT plus shipping costs
Subject to prior sale

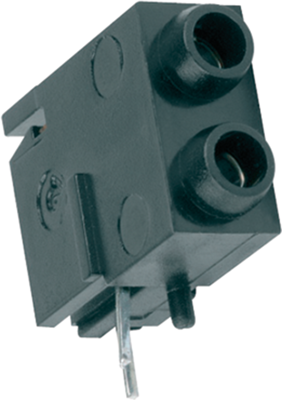

Twin test jacks, 2.0 mm, type Mentor 1812../1813.
For 2.0 mm plugs, with 2 jacks, for front-panel mounting, open rear; Housing: PC, black. Contacts: nickel-plated. Connections: tinned. Switching voltage: max. 60 V AC/DC. Switching current: max. 1.0 A. Test voltage: 1000 V/50 Hz. Insulation class: VDE 0110, Group C. Operating temperatures: –25 to +85 °C. Corresponding shorting pins are described in the respective chapter.

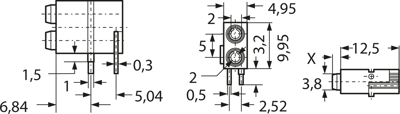

Technical attributes (type, dimension X): 1813.2231, X 3.5 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | solder connection | |
| Version | test socket | |
| Length | 12.5 mm | |
| contact surface | nickel-plated | |
| Touch safe | No | |
| diameter | 2 mm | |
| Rated current | 1 A | |
| Colour | black | |
| Rated Voltage | 60 V |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 25 pieces |
| Customs tariff number | 85366990 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
