1859.1031 | Mentor
Key switch 1859.1031
Unit Price (€ / pc.)
5.3669 € *
Standard delivery time from the manufacturer is: On Request

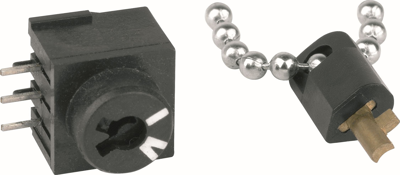

Key switch, 1859.1031, MENTOR
This detachable-key switch is designed especially for FEL-engineering. Rated for application in the area of front panels it protects against unauthorized switching of the system. Two fixing pins as well as a collar in the front panel design compensate possible mechanical loading. The handy key is provided with a metal chain for storing.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Breaking capacity | 0.5 A/60 V AC/DC | |
| Connection | solder connection | |
| Rotation angle | 56° | |
| Latching switching function | On-On | |
| contact surface | tin-plated | |
| Version | latching | |
| Installation diameter | 7.8 mm | |
| Pin number | 2 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
