4311.4131 | Mentor

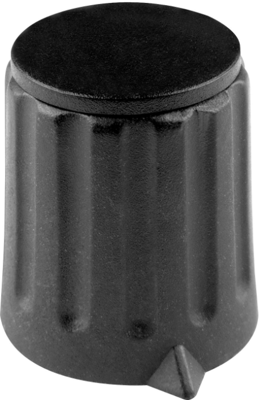

Pointer knob, 4 mm, plastic, black, Ø 20 mm, H 17 mm, 4311.4131
Unit Price (€ / pc.)
2.9155 € *
Available: 46 pcs.
Total Price:
2.92 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9155 €
25 pcs.
2.4752 €
100 pcs.
2.2967 €
250 pcs.
2.1896 €
1000 pcs.
1.9873 €
*incl. VAT plus shipping costs
Subject to prior sale
Plastic rotary knobs, type Mentor 4307../4309../4311../4312.
Dull finish, collet chuck mount and knob edge with index; Knob color: black. The cap is available on separate order. Knob variants with 12 and 15 mm diameter do not have a recess for covering the nut.
Mit Knopfdurchmesser 20 mm Typ 4311.

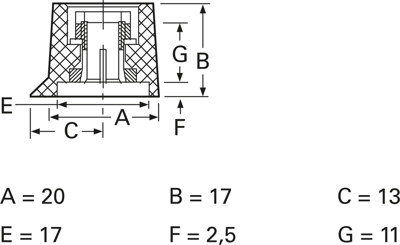

Maße: A 20,0, B 17,0, C 13,0, E 17,0, F 2,5, G 11,0 mm
Technical attributes (type, shaft diameter (OD)): 4311.4131, Ad 4,0 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pointer knob | |
| For shaft diameter | 4 mm | |
| diameter | 20 mm | |
| Height | 17 mm | |
| Marking | No | |
| Type of mounting | collet mounting | |
| Material | plastic | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
