11032 | Mennekes

Surface-mounted german schuko-style socket outlet, black, 16 A/230 V, Germany, IP54, 11032

Order No.: 05N6964
EAN: 4015394184638
MPN:
11032

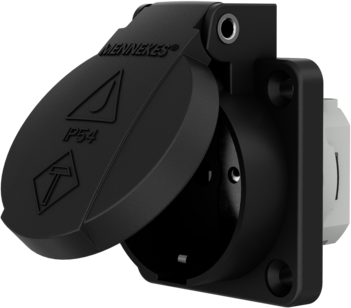

11032 Mennekes Sockets, Device Sockets Image 1

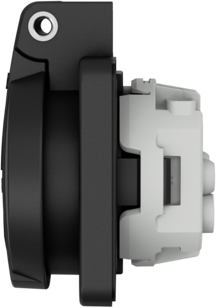

11032 Mennekes Sockets, Device Sockets Image 2
11032 Mennekes Sockets, Device Sockets Image 3

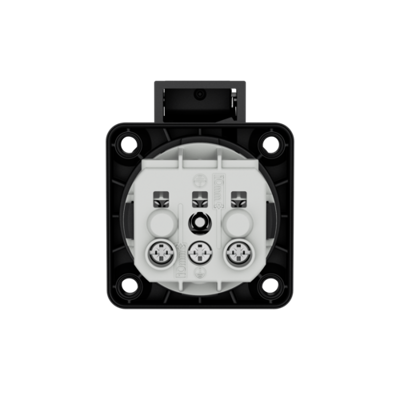

11032 Mennekes Sockets, Device Sockets Image 4
Image may differ
Unit Price (€ / pc.)
12.9353 € *
Available: 87 pcs.
Total Price:
12.94 € *
Price list
Quantity
Price per unit*
1 pcs.
12.9353 €
10 pcs.
11.3764 €
50 pcs.
10.6029 €
150 pcs.
10.1388 €
500 pcs.
9.6152 €
*incl. VAT plus shipping costs
Subject to prior sale

Schuko-style appliance outlet, 11032, Mennekes

Bezel: 23 mm height, 50 x 50/61 mm, round hinged lid, compliant with DIN 49440-1, jet water-proof to IP 54. Housing: impact resistant plastic (AMAPLAST) with hammer logo. Connections: 2 P + E, 16 A/230 VAC. Connection: screw terminals 1.5 to 2.5 mm². Panel-mount diameter: 44.5 mm. Mounting depth: 21.7 mm. Mounting holes : 4, with 38 mm pitch.

Type: 11032, outlet, black.

Technical specifications
Nominal power 16 A/230 V
Version Surface-mounted german schuko-style socket outlet
Country code Germany
Connection screw connection
Degree of protection (IP) IP54
Colour black
Hinged cover available Yes
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Lead
SVHC free No
