11030 | Mennekes

Surface-mounted german schuko-style socket outlet, gray, 16 A/230 V, Germany, IP54, 11030

Order No.: 05N6960
EAN: 4015394184614
MPN:
11030

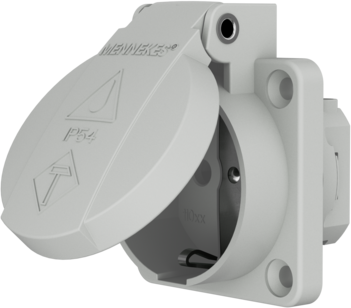

11030 Mennekes Sockets, Device Sockets Image 1

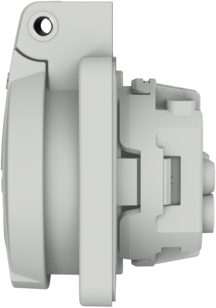

11030 Mennekes Sockets, Device Sockets Image 2

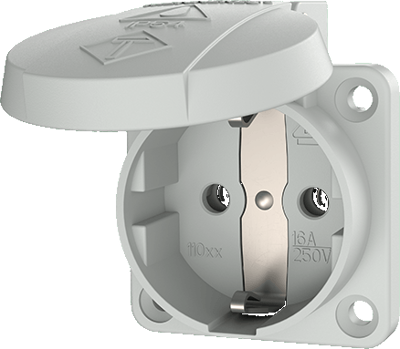

11030 Mennekes Sockets, Device Sockets Image 3
Image may differ
Unit Price (€ / pc.)
12.9353 € *
Available: 107 pcs.
Total Price:
12.94 € *
Price list
Quantity
Price per unit*
1 pcs.
12.9353 €
10 pcs.
11.3764 €
50 pcs.
10.6029 €
150 pcs.
10.1388 €
500 pcs.
9.6152 €
*incl. VAT plus shipping costs
Subject to prior sale

Schuko-style appliance outlet, 11030, Mennekes

Bezel: 23 mm height, 50 x 50/61 mm, round hinged lid, compliant with DIN 49440-1, jet water-proof to IP 54. Housing: impact resistant plastic (AMAPLAST) with hammer logo. Connections: 2 P + E, 16 A/230 VAC. Connection: screw terminals 1.5 to 2.5 mm². Panel-mount diameter: 44.5 mm. Mounting depth: 21.7 mm. Mounting holes : 4, with 38 mm pitch.

Type: 11030, outlet, gray.

Technical specifications
Filter Property Value
Degree of protection (IP) IP54
Nominal power 16 A/230 V
Connection screw connection
Version Surface-mounted german schuko-style socket outlet
Country code Germany
Hinged cover available Yes
Colour gray
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
