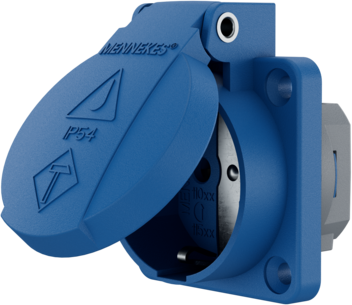

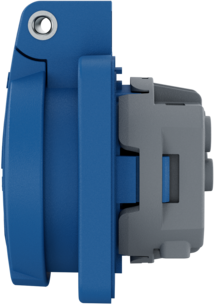

11011 | Mennekes

Surface-mounted german schuko-style socket outlet, blue, 16 A/230 V, Germany, IP54, 11011

Order No.: 05N6970

EAN: 4015394136729

MPN:

11011

11011 Mennekes Sockets, Device Sockets Image 3

Image may differ

Key Specification:

Version Surface-mounted german schuko-style socket outlet

Country code Germany

Colour blue

Connection clamp connection

Nominal power 16 A/230 V

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

Surface-mounted german schuko-style socket outlet, blue, 16 A/230 V, Germany, IP54, 11031

Order No.: 05N6962

Manufacturer: Mennekes

per pc. 12.9353 € *

Go to product

*incl. VAT plus shipping costs

Description

Schuko-style appliance outlet, 11011, Mennekes

Bezel: 23 mm height, 50 x 50/61 mm, round hinged lid, compliant with DIN 49440-1, jet water-proof to IP 54. Housing: impact resistant plastic (AMAPLAST) with hammer logo. Connections: 2 P + E, 16 A/230 VAC. Connection: screw terminals 1.5 to 2.5 mm². Panel-mount diameter: 44.5 mm. Mounting depth: 21.7 mm. Mounting holes : 4, with 38 mm pitch.

With push-in terminals, type 1101.

Type: 11011, outlet, blue.

Technical specifications

Filter	Property	Value
	Colour	blue
	Connection	clamp connection
	Degree of protection (IP)	IP54
	Nominal power	16 A/230 V
	Hinged cover available	Yes
	Version	Surface-mounted german schuko-style socket outlet
	Country code	Germany
