11010 | Mennekes

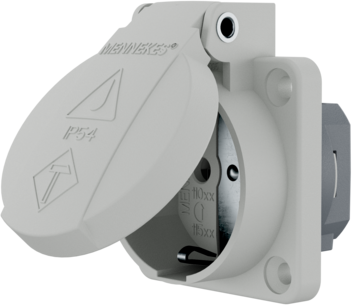

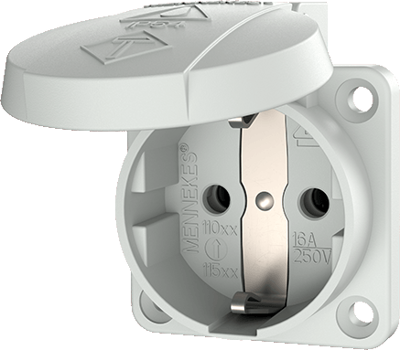

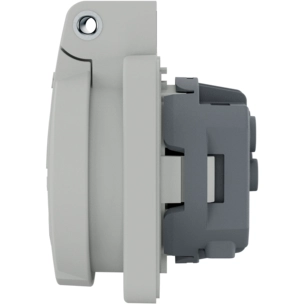

Surface-mounted german schuko-style socket outlet, gray, 16 A/230 V, Germany, IP54, 11010
Order No.: 05N6968
EAN: 4015394136712
MPN:
11010
This item is no longer available.
As an alternative, we recommend the following item:
Surface-mounted german schuko-style socket outlet, gray, 16 A/230 V, Germany, IP54, 11030
Order No.: 05N6960
Manufacturer: Mennekes
per pc. 12.9353 € *
Schuko-style appliance outlet, 11010, Mennekes
Bezel: 23 mm height, 50 x 50/61 mm, round hinged lid, compliant with DIN 49440-1, jet water-proof to IP 54. Housing: impact resistant plastic (AMAPLAST) with hammer logo. Connections: 2 P + E, 16 A/230 VAC. Connection: screw terminals 1.5 to 2.5 mm². Panel-mount diameter: 44.5 mm. Mounting depth: 21.7 mm. Mounting holes : 4, with 38 mm pitch.
With push-in terminals, type 1101.
Type: 11010, outlet, gray.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP54 | |
| Nominal power | 16 A/230 V | |
| Connection | clamp connection | |
| Version | Surface-mounted german schuko-style socket outlet | |
| Country code | Germany | |
| Hinged cover available | Yes | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
