980 | Mennekes

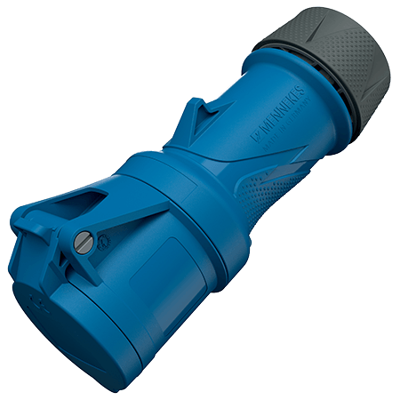

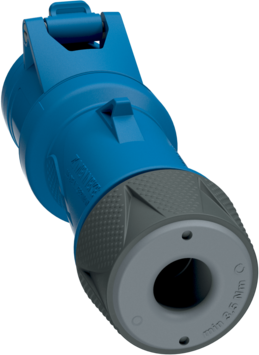

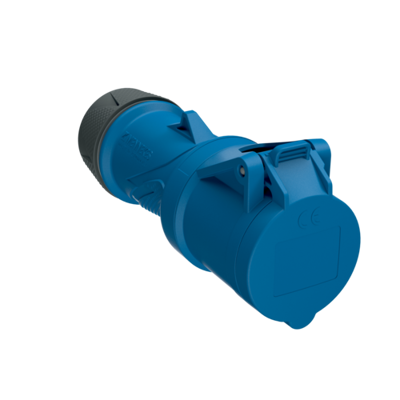

CEE jack, 3 pole, 16 A/230 V, blue, 6 h, IP44, 980
Order No.: 12N750
EAN: 4015394183532
MPN:
980
This item is no longer available.
As an alternative, we recommend the following item:
CEE jack, 3 pole, 16 A/230 V, blue, 6 h, IP54, 14521
Order No.: 12N348
Manufacturer: Mennekes
per pc. 23.4549 € *
CEE connectors with SafeCONTACT, type Mennekes StarTOP.
Splashproof to IP 44, without screws, insulation displacement technology. With strain relief, cable anti-kink guard and sealed screwed cable gland. The housing features a threaded lock and a fuse slider; Version: to DIN VDE 0623, EN 60309-2, Color: electrical-gray and/or color code, Housing and insert: made of high strength plastic (AMAPLAST). Contacts (number of poles/contact type): 5 Pole/3 P + N + E.
Technical attributes ((type, rated current, number of poles, operating voltage (50/60 Hz), color code): 980, 16 A, 3pole, 230 V, blue
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | jack | |
| Pin number | 3 pole | |
| Nominal power | 16 A/230 V | |
| Frequency range | 50 to 60 Hz | |
| Connection | IDC connection | |
| Cable cross-section | 1.0-2.5 mm² | |
| Colour | blue | |
| Degree of protection (IP) | IP44 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
