3322 | Mennekes
CEE plug with phase inverter, 5 pole, 32 A/400 V, red, 6 h, IP44, 3322
Order No.: 12N732
EAN: 4015394215530
MPN:
3322
Unit Price (€ / pc.)
58.7979 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
58.80 € *
Price list
Quantity
Price per unit*
1 pcs.
58.7979 €
5 pcs.
54.6805 €
10 pcs.
50.8487 €
25 pcs.
46.7908 €
*incl. VAT plus shipping costs
**Subject to prior sale

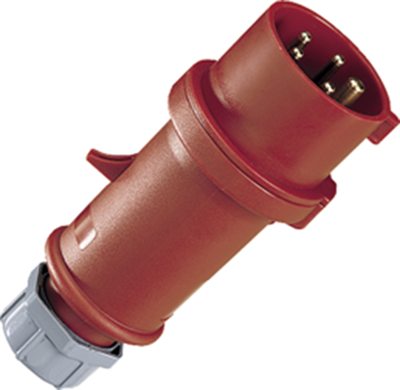

CEE phase inverter plugs, type Mennekes ProTOP.

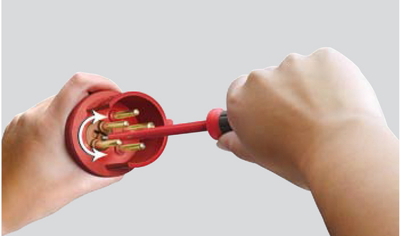

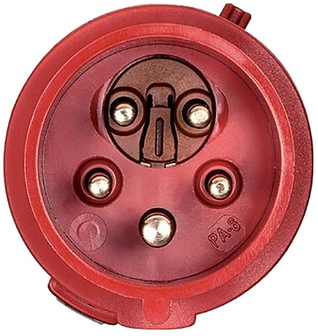

Splashproof to IP 44, with cable anti-kink guard, threaded lock and fuse slider, for reliable and quick phase changes; Housing and insert: made of high strength plastic (AMAPLAST). Contacts (number of poles/contact type): 5-pole/3 P + N + E.
Technical attributes (type, rated current, number of poles, operating voltage (50/60 Hz), color code): 3322, 32 A, 5–pole, 400 V, red
Technical specifications
| Colour | red | |
| Frequency range | 50 to 60 Hz | |
| Degree of protection (IP) | IP44 | |
| Cable cross-section | 2.5-6.0 mm² | |
| Pin number | 5 pole | |
| Version | plug with phase inverter | |
| Nominal power | 32 A/400 V | |
| Connection | screw connection |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
