33 | Mennekes

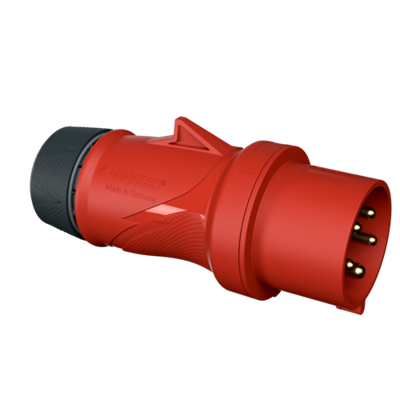

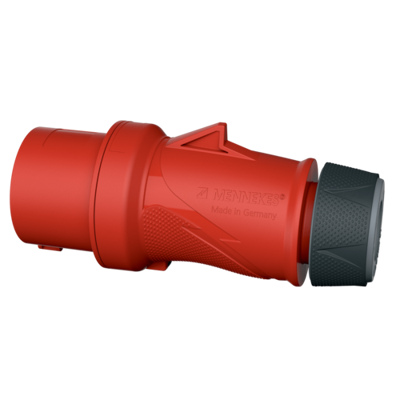

CEE plug, 5 pole, 16 A/400 V, red, 6 h, IP44, 33
Order No.: 12N362
EAN: 4015394172178
MPN:
33
This item is no longer available.
As an alternative, we recommend the following item:
CEE plug, 5 pole, 16 A/400 V, red, 6 h, IP44, 13522
Order No.: 12N340
Manufacturer: Mennekes
per pc. 12.9591 € *
CEE plugs, type Mennekes StarTOP.
Splashproof to IP 44, with insulation displacement technology, strain relief, cable anti-kink guard and screwed cable gland with seal. Housing with threaded lock and fuse slider; Version: to DIN VDE 0623, EN 60309-2: Color: electrical-gray and/or color code: Housing and insert: made of high strength plastic (AMAPLAST). Contacts (number of poles/contact type): 5 Pole/3 P + N + E.
Technical attributes ((type, rated current, number of poles, operating voltage (50/60 Hz), color code): 33, 16 A 5-pole, 400 V, red
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | plug | |
| Pin number | 5 pole | |
| Nominal power | 16 A/400 V | |
| Frequency range | 50 to 60 Hz | |
| Connection | IDC connection | |
| Cable cross-section | 1.0-2.5 mm² | |
| Colour | red | |
| Degree of protection (IP) | IP44 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
