16A | Mennekes

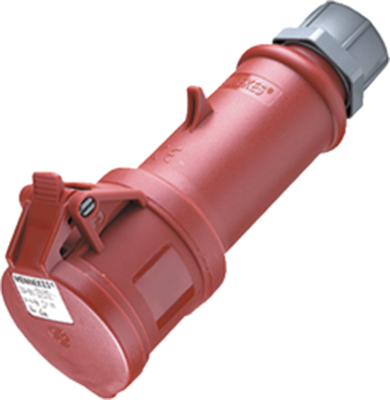

CEE jack, 5 pole, 32 A/400 V, red, 6 h, IP44, 16A
Order No.: 12N764
EAN: 4015394199823
MPN:
16A
This item is no longer available.
As an alternative, we recommend the following item:
CEE jack, 5 pole, 32 A/400 V, red, 6 h, IP44, 14520
Order No.: 12N347
Manufacturer: Mennekes
per pc. 18.4926 € *
CEE connectors, type Mennekes ProTOP.
Splashproof to IP 44, with threaded lock and fuse slider on the front section and on the hood, integrated strain relief and cable anti-kink guard; Termination: screw terminals. Version: to DIN VDE 0623, EN 60309-2, Color: electrical-gray and/or color code, Housing and insert: made of high strength plastic (AMAPLAST). Contacts (number of poles/contact type): 3 Pole/2 P + E, 4 Pole/3 P + E, 5 Pole/3 P + N + E.
Technical attributes ((type, rated current, number of poles, operating voltage (50/60 Hz), color code): 16A, 32 A, 5pole, 400 V, red
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | jack | |
| Pin number | 5 pole | |
| Nominal power | 32 A/400 V | |
| Frequency range | 50 to 60 Hz | |
| Connection | screw connection | |
| Cable cross-section | 2.5-6.0 mm² | |
| Colour | red | |
| Degree of protection (IP) | IP44 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
