14A | Mennekes

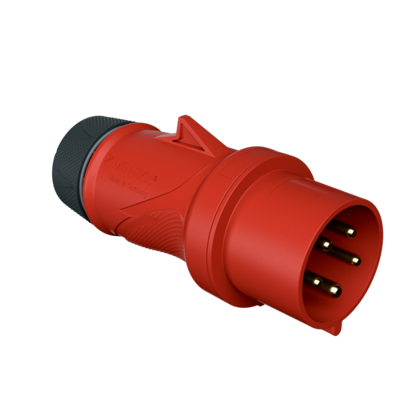

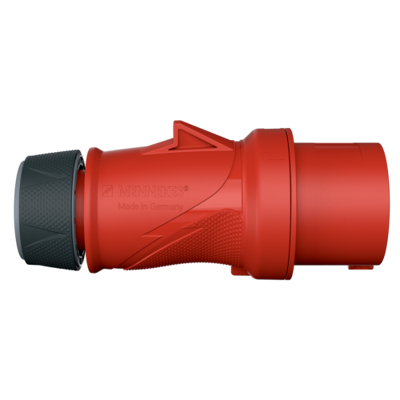

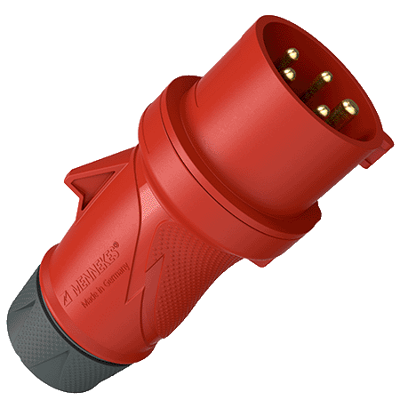

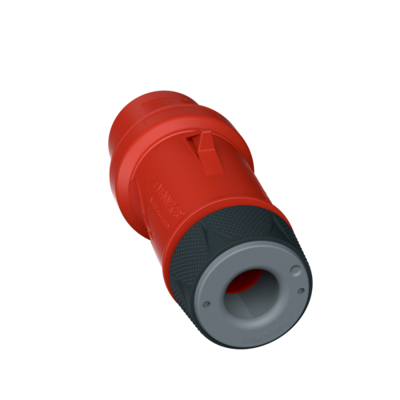

CEE plug, 5 pole, 32 A/400 V, red, 6 h, IP44, 14A
Order No.: 12N384
EAN: 4015394188537
MPN:
14A
This item is no longer available.
As an alternative, we recommend the following item:
CEE plug, 5 pole, 32 A/400 V, red, 6 h, IP44, 13520
Order No.: 12N345
Manufacturer: Mennekes
per pc. 14.9345 € *
CEE plugs, type Mennekes ProTOP.
Splashproof to IP 44, with threaded lock, fuse slider, integrated strain relief/cable anti-kink guard; Termination: screw terminals. Version: to DIN VDE 0623, EN 60309-2, Color: electrical-gray and/or color code, Housing and insert: made of high strength plastic (AMAPLAST). Contacts (number of poles/contact type): 3 Pole/2 P + E, 4 Pole/3 P + E, 5 Pole/3 P + N + E.
Technical attributes ((type, rated current, number of poles, operating voltage (50/60 Hz), color code): 14A, 32 A, 5pole, 400 V, red
Technical specifications
| Pin number | 5 pole | |
| Cable cross-section | 6.0 mm² | |
| Connection | screw connection | |
| Degree of protection (IP) | IP44 | |
| Version | plug | |
| Nominal power | 32 A/400 V | |
| Colour | red | |
| Frequency range | 50 to 60 Hz |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
