14522 | Mennekes

CEE jack, 5 pole, 16 A/400 V, red, 6 h, IP54, 14522

Order No.: 12N342
EAN: 4015394289333
MPN:
14522
Series: PowerTOP Xtra S

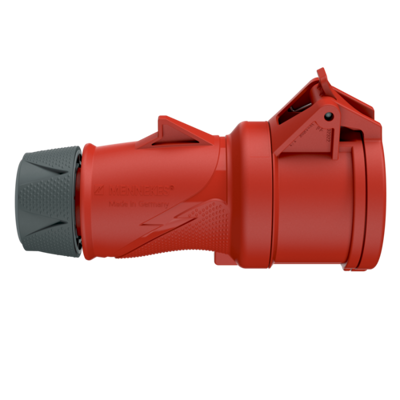

14522 Mennekes CEE Connectors Image 1

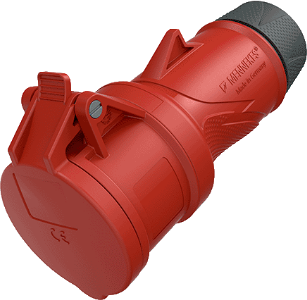

14522 Mennekes CEE Connectors Image 2

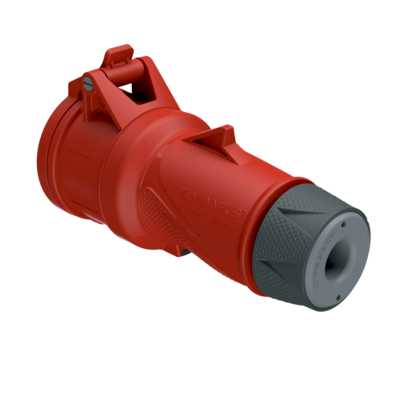

14522 Mennekes CEE Connectors Image 3
Image may differ
Unit Price (€ / pc.)
15.6604 € *
Available: 5 pcs.
Total Price:
15.66 € *
Price list
Quantity
Price per unit*
1 pcs.
15.6604 €
10 pcs.
13.7683 €
50 pcs.
12.8163 €
150 pcs.
12.2689 €
500 pcs.
11.6382 €
*incl. VAT plus shipping costs
Subject to prior sale

Connector PowerTOP, 14522, Mennekes

PowerTOP Xtra connector deliver excellent results thanks to their ergonomic design, easy to install, safe and easy connection, and X-CONTACT inside. The innovative contact sleeves ensure easy insertion and withdrawal. The PowerTOP Xtra connector has IP 54 protection class and is therefore impervious to both water spray and dust.

Features

  • Screwless, with insulation displacement technology
  • Ergonomic enclosure design with nubbed grip zones
  • Rubberised cable gland with sealing
  • Strain relief and protection against kinking
  • Thread lock and safety slide
  • Area for self-adhesive labels
Technical specifications
Connection IDC connection
Degree of protection (IP) IP54
Frequency range 50 to 60 Hz
Pin number 5 pole
Colour red
Cable cross-section 1.0-2.5 mm²
Version jack
Nominal power 16 A/400 V
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
SVHC free No
