14225 | Mennekes

CEE jack, 5 pole, 125 A/400 V, 6 h, IP67, 14225

Order No.: 12N618
EAN: 4015394240815
MPN:
14225
Series: PowerTOP Xtra

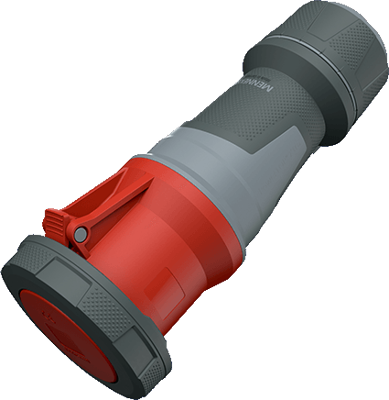

14225 Mennekes CEE Connectors Image 1

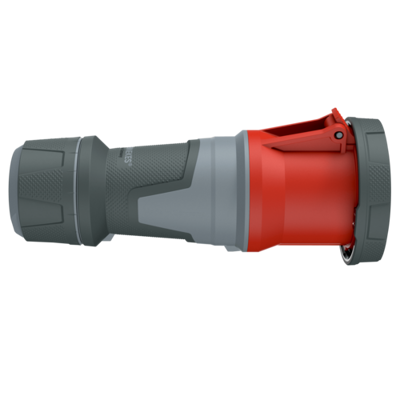

14225 Mennekes CEE Connectors Image 2

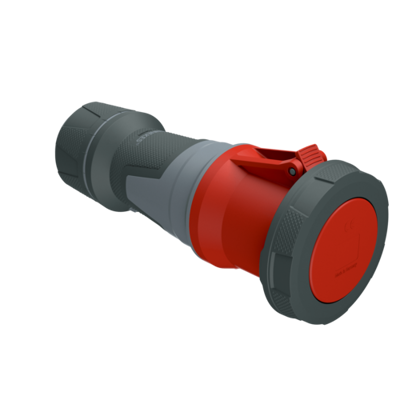

14225 Mennekes CEE Connectors Image 3

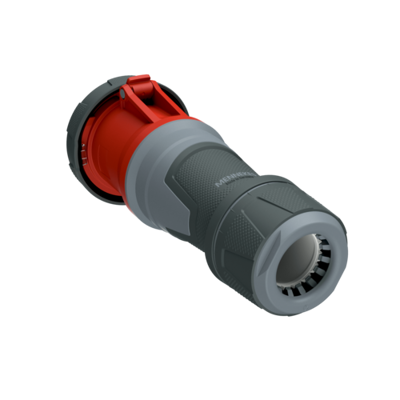

14225 Mennekes CEE Connectors Image 4
Image may differ
Unit Price (€ / pc.)
458.15 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
2,290.75 € *
*incl. VAT plus shipping costs
Subject to prior sale
5 pcs.
458.15 €

Connector, 14225, Mennekes

Connector with rubberised grip area.

Features

  • Highly heat resistant contact carrier
  • Frame terminals
  • Cable gland and sealing
  • Strain relief and protection against kinking
  • Enclosure with thread lock
  • Two safety slides
Technical specifications
Nominal power 125 A/400 V
Frequency range 50 to 60 Hz
Pin number 5 pole
Degree of protection (IP) IP67
Version jack
Connection screw connection
Cable cross-section 25-50 mm²
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
