1411 | Mennekes

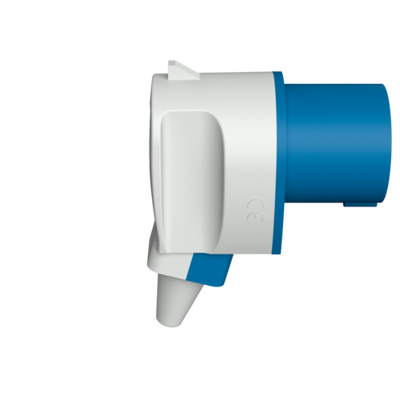

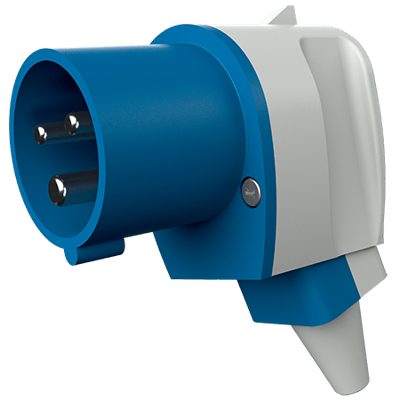

CEE angle plug, 3 pole, 16 A/230 V, blue/gray, 6 h, IP44, 1411
Order No.: 12N620
EAN: 4015394010425
MPN:
1411
Unit Price (€ / pc.)
40.698 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Angled CEE plugs, type Mennekes 1411/3266/3980.
Splashproof to IP 44, space-saving and particularly ergonomic version. With cable anti-kink guard. The cable entry of type 3980 can be turned clockwise and counterclockwise by 60°; Version: to DIN VDE 0623, EN 60309-2. Housing and insert: made of high strength plastic (AMAPLAST). Contacts (number of poles/contact type): 3-pole/2 P + E, 5-pole/3 P + N + E.
Technical attributes (type, rated current, number of poles, operating voltage (50/60 Hz), color code): 1411, 16 A, 3-pole, 230 V, blue
Technical specifications
| Connection | screw connection | |
| Version | angle plug | |
| Colour | blue/gray | |
| Frequency range | 50 to 60 Hz | |
| Cable cross-section | 1.0-2.5 mm² | |
| Nominal power | 16 A/230 V | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP44 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
