13A | Mennekes

CEE plug, 5 pole, 16 A/400 V, red, 6 h, IP44, 13A

Order No.: 12N382
EAN: 4015394181262
MPN:
13A

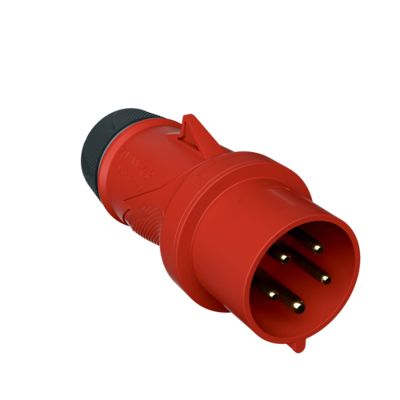

13A Mennekes CEE Connectors Image 1

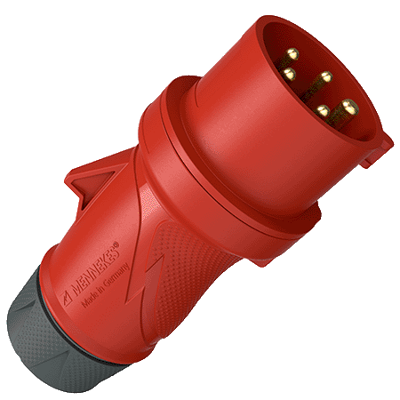

13A Mennekes CEE Connectors Image 2

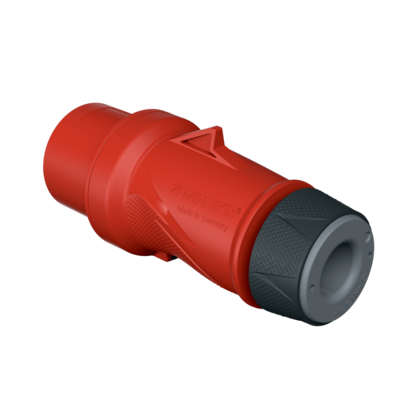

13A Mennekes CEE Connectors Image 3

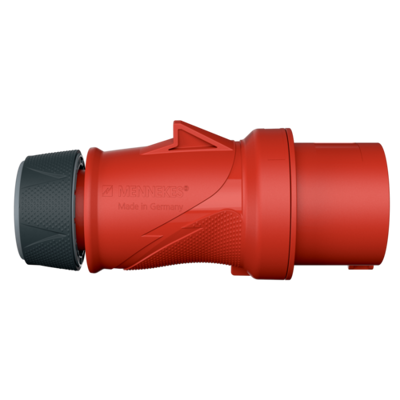

13A Mennekes CEE Connectors Image 4
Image may differ
This item is no longer available.
As an alternative, we recommend the following item:
CEE plug, 5 pole, 16 A/400 V, red, 6 h, IP44, 13510
CEE plug, 5 pole, 16 A/400 V, red, 6 h, IP44, 13510
Order No.: 12N344
Manufacturer: Mennekes
per pc. 11.0551 € *

CEE plugs, type Mennekes ProTOP.

Splashproof to IP 44, with threaded lock, fuse slider, integrated strain relief/cable anti-kink guard; Termination: screw terminals. Version: to DIN VDE 0623, EN 60309-2, Color: electrical-gray and/or color code, Housing and insert: made of high strength plastic (AMAPLAST). Contacts (number of poles/contact type): 3 Pole/2 P + E, 4 Pole/3 P + E, 5 Pole/3 P + N + E.

Technical attributes ((type, rated current, number of poles, operating voltage (50/60 Hz), color code): 13A, 16 A, 5pole, 400 V, red

Technical specifications
Pin number 5 pole
Cable cross-section 1.0-2.5 mm²
Connection screw connection
Degree of protection (IP) IP44
Version plug
Nominal power 16 A/400 V
Colour red
Frequency range 50 to 60 Hz
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
Replacement
