13629 | Mennekes

CEE CEE plug, 5 pole, 32 A/400 V, gray/red, 6 h, IP67/IP69, 13629

Order No.: 05N6998
EAN: 4015394302452
MPN:
13629
Series: PowerTOP Xtra
13629 Mennekes CEE Connectors
Image may differ
Unit Price (€ / pc.)
106.2789 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
106.28 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
106.2789 €

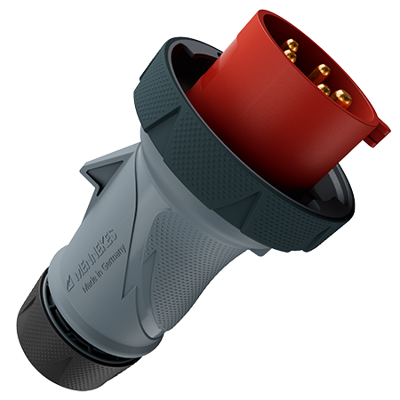

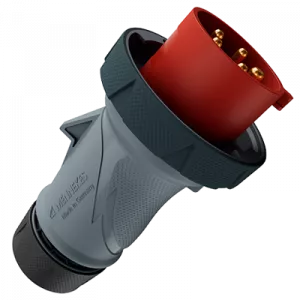

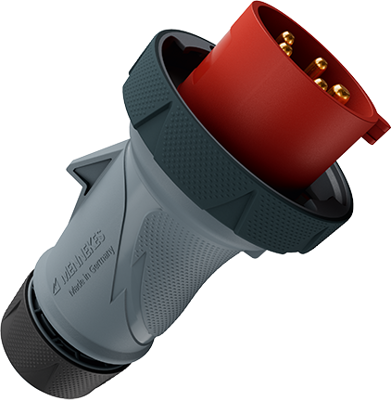

Plug PowerTOP Xtra S, 13629, Mennekes

Robust technology for harsh environmental conditions - the PowerTOP Xtra plug impresses with its proven success factors: ergonomic design, ease of installation, safe and uncomplicated connection. The plugs in the PowerTOP Xtra family fulfil protection class IP67 / IP69 and are therefore not only protected against temporary submersion, but also against high pressure cleaning.

Features

  • Screw connection technology ErgoCONTACT
  • Ergonomic enclosure design with nubbed grip zones
  • Rubberised cable gland with sealing
  • Rubberised bayonet ring
  • Sealed against dust, temporary submersion and high pressure cleaning
  • Strain relief and protection against kinking
  • Thread lock and safety slide
  • Area for self-adhesive labels
Technical specifications
Nominal power 32 A/400 V
Cable cross-section 2.5-6.0 mm²
Version plug
Pin number 5 pole
Colour gray/red
Connection screw connection
Degree of protection (IP) IP67/IP69
Frequency range 50 to 60 Hz
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
