13620 | Mennekes

CEE CEE plug, 3 pole, 16 A/230 V, gray/blue, 6 h, IP67/IP69, 13620

Order No.: 05N6996
EAN: 4015394302421
MPN:
13620
Series: PowerTOP Xtra
13620 Mennekes CEE Connectors
Image may differ
Unit Price (€ / pc.)
93.4031 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
93.40 € *
Price list
Quantity
Price per unit*
1 pcs.
93.4031 €
2 pcs.
90.8089 €
5 pcs.
88.3456 €
*incl. VAT plus shipping costs
Subject to prior sale

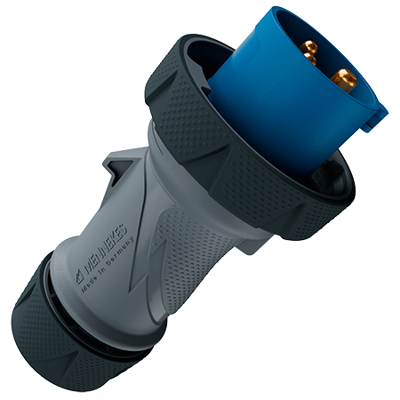

Plug PowerTOP Xtra S, 13620, Mennekes

Robust technology for harsh environmental conditions - the PowerTOP Xtra plug impresses with its proven success factors: ergonomic design, ease of installation, safe and uncomplicated connection. The plugs in the PowerTOP Xtra family fulfil protection class IP67 / IP69 and are therefore not only protected against temporary submersion, but also against high pressure cleaning.

Features

  • Screw connection technology ErgoCONTACT
  • Ergonomic enclosure design with nubbed grip zones
  • Rubberised cable gland with sealing
  • Rubberised bayonet ring
  • Sealed against dust, temporary submersion and high pressure cleaning
  • Strain relief and protection against kinking
  • Thread lock and safety slide
  • Area for self-adhesive labels
Technical specifications
Connection screw connection
Degree of protection (IP) IP67/IP69
Pin number 3 pole
Colour gray/blue
Version plug
Frequency range 50 to 60 Hz
Cable cross-section 1.0-2.5 mm²
Nominal power 16 A/230 V
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
