USB-1208FS-PLUS | Meilhaus

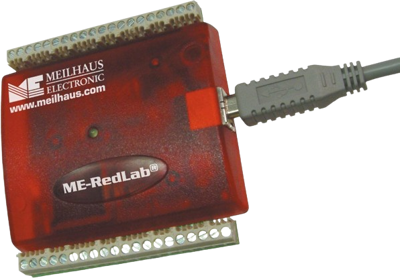

USB mini measurement laboratory, USB-1208FS-PLUS

Order No.: 20K265
EAN: 4099891768645
MPN:
USB-1208FS-PLUS
1208FS, 8 channel
USB-1208FS-PLUS Meilhaus USB Measuring Systems
Image may differ
Unit Price (€ / pc.)
308.21 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
308.21 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
308.21 €

USB mini measurement laboratory, USB-1208FS-PLUS, Meilhaus

The USB-1208FS-PLUS is so compact that it fits into a vest pocket. At the same time it contains a complete mini DAQ lab with 12 bit A/D resolution and additional digital I/Os, which can be used for control or switching applications. Use the RedLabs in mobile applications or when there is shortage of space.

Features

  • 12 bit multi I/O min DAQ labs for USB
  • 8 single-ended or 4 differential A/D channels
  • 12 bit A/D conversion. Input range up to ±20 V
  • 2 D/A channels, 10 bit D/A conversion
  • 16 TTL/CMOS digital I/O channels
  • 32 bit event counter
  • 2 rows of screw terminals
Technical specifications
Filter Property Value
Version USB mini measurement lab
Digital-I/O 16
Analog Input Channels 12 bit
Analog Output Channels 2, 10 bit
Counter 32 bit
Logistics
Property Value
Country of origin HU
Customs tariff number 84733020
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
