LABJACK U6 | Meilhaus
USB mini measurement laboratory, LABJACK U6
Order No.: 20K276
EAN: 4099891474263
MPN:
LABJACK U6
USB Mini-Messlabor Analog
Unit Price (€ / pc.)
530.5972 € *
Standard delivery time from the manufacturer is: 1 Week

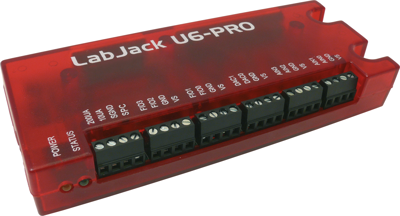

USB mini measurement labs, type Meilhaus LabJack U6.
With 20 digital I/O lines, 14 analog inputs (16-to 18-bit), 14 single-ended or 7 differential inputs (ranges ±10 V, ±1.0 V, ±0.1 V), internal temperature sensor for cold spot compensation, 2 fixed current outputs (200/10 µA), 2 analog outputs (12-bit, 0 to 5.0 V), two 32-bit counters, 4 special counters (pulse width modulation/PWM output, pulse/timing, pulse counter, quadrature input etc.), supports SPI, I²C and asynchronous serial protocols; Connections: 24 screw terminals, 15- and 37-pole sub-D socket, USB type B. Operating temperatures: –40 to +85 °C. Dimensions: 75 x 185 x 30 mm. Supplied with USB cable, screwdriver, and software.
Type: LabJack U6, USB mini measurement lab,
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | USB mini measurement lab | |
| Digital-I/O | 20 | |
| Analog Input Channels | 14, 18 bit | |
| Analog Output Channels | 2, 12 bit | |
| Counter | 2, 32 bit |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
