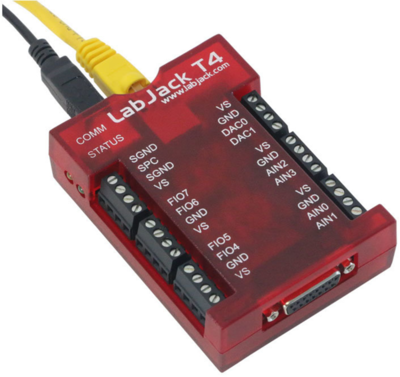

LabJack T4 - The Ethernet + USB Mini-LabJack.

The LabJack T4 is a DAQ system for Ethernet/LAN and USB. It includes a complete multi-I/O measurement lab with 4 analog voltage inputs, 8 configurable flexible input, 2 analog outputs and digital-I/O channels. Major applications are measurement and control with laptop or PC as well as at an existing Ethernet/LAN (labs, industrial facilities, buildings, IoT, environmental etc.). It is low-cost, easy to use and also suitable for education. Power is supplied via the USB port, in USB mode from the PC or in LAN mode through a power adaptor at the USB-port.

4 analog inputs, range±10 V, 12 bit resolution.

8 flexible I/Os, individually configurable as digital inputs, digital outputs or analog inputs.

As digital-I/O: 3.3 V level, configurable as counters/timers or for SPI, I2C and other communication protocolls.

As analog inputs: Range 0...2.5 V, 12 bit resolution.

8 digital-I/O lines, 3.3 V level, configurable as counters/timers or for SPI, I2C and other communication protocolls.

2 analog outputs, range 0...5 V, 10 bit resolution.

Timer: Hardware timer with options like PWM output, pulse/period timing, pulse counter and quadrature inputs.
