95NA350913611806 | MEC Switches
Short-stroke pushbutton, 1 Form A (N/O), 50 mA/24VDC, illuminated, actuator (black), 3.5 N, module, 95NA350913611806
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
39.984 € *
Standard delivery time from the manufacturer is: On Request
Navigation button, 95NA350913611806, APEM

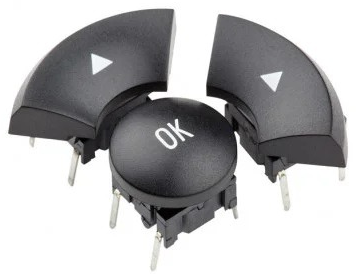

Navimec™ is a 5 position navigation solution, ideal as an input device where a joystick-like function is required. It has a confirmation key in the middle and 4 direction keys around the outside and is available as a complete module or in individual parts for independent PCB mounting, optionally with lighting.
Features
- Ø34,25 mm
- Standard colors: grey, white, black, milky white, ultra blue, dove blue, aqua blue, metallic dark blue, metallic light grey, metallic dark grey and metallic bordeaux
- Standard symbols possible
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) | |
| Breaking capacity | 50 mA/24VDC | |
| illuminated | Yes | |
| Actuator colour | black | |
| Connection | module | |
| actuating force | 3.5 N | |

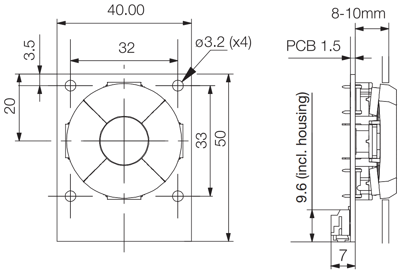

| Length | 46.7 mm | |
| Width | 40 mm | |
| Height | 11.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DK |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
