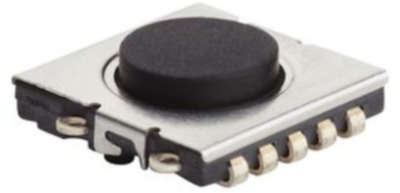

6CJ1NOPR | MEC Switches
Short-stroke pushbutton, 1 Form A (N/O), 50 mA/24VDC, unlit , actuator (black), 3.7 N, SMD, 6CJ1NOPR
Unit Price (€ / pc.)
1.9754 € *
Available: 995 pcs.
Total Price:
1.98 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9754 €
25 pcs.
1.6660 €
100 pcs.
1.5470 €
250 pcs.
1.4756 €
1000 pcs.
1.3447 €
*incl. VAT plus shipping costs
Subject to prior sale
Ultramec probe, 6CJ1NOPR, APEM
Ultramec™ is a completely new MEC switch series, with 6C as the first switch in the series. The Ultramec™ 6C is an ultra-flat switch with crisp switching noise and tactile feedback. It features IP67 sealing, a lifetime of up to 3 million cycles and optional positioning pins for optimal precision in PCB assembly. The switch is ideal for under-foil applications, custom cap design and applications with very limited space.
Features
- h=2,5mm
- 8 x 8 mm
- Keying NO
- IP67 sealing
- 3.000.000 cycles
- J-Bend connections
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | SMD | |
| Width | 8 mm | |
| Actuator colour | black | |
| Latching switching function | 1 Form A (N/O) | |
| Length | 8 mm | |
| Contact material | silver-plated | |
| actuating force | 3.7 N | |
| illuminated | No | |
| Breaking capacity | 50 mA/24VDC | |
| Height | 2.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DK |
| Customs tariff number | 85365080 |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
