MEAN WELL

MDR-10-12 | MEAN WELL

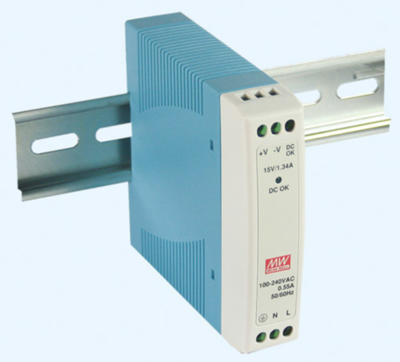

Power supply, 12 VDC, 840 mA, 10 W, MDR-10-12

Order No.:  62C1532
MPN:
MDR-10-12
Series:  MDR-10
EAN: 4099891285937
MEAN WELL
default L
default S
Images may differ
Unit Price (€ / pc.)
22.4315 € *
Available: 0 pcs.
Next delivery: 1 pcs. on 2024-03-29
Leadtime: 4 Weeks **
Add to Cart
Total Price:
22.43 € *
Quantity
Price per unit*
1 pcs.
22.4315 €
10 pcs.
19.7302 €
50 pcs.
18.3855 €
150 pcs.
17.5882 €
500 pcs.
16.6838 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description

Power supply, MDR-10-12, MEAN WELL

AC-DC Industrial DIN rail power supply, output 12 VDC at 0.84 A, plastic housing.

Features

  • Universal AC input/full range
  • Voltage at the end of long lines
  • Galvanic insulation
  • Built-in DC OK relay contact
  • LED indicator for power on
  • 100% full load burn-in test
Technical specifications
Number of outputs 1
Output voltage DC 12 VDC
Output current 840 mA
Width 22.5 mm
Input voltage AC 85-264 VAC, 120-370 VDC
Height 90 mm
Power 10 W
Depth 100 mm
efficiency 81 %
Show similar products (0)
Logistics
Country of origin CN
Customs tariff number 85043180
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
